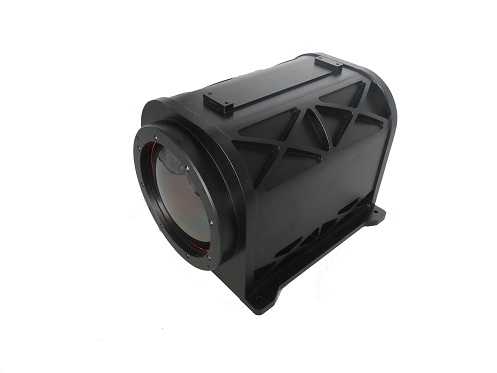

Taking uncooled thermal imaging cameras to the next level, QLDOPTRONICS's ST-640-ULWTC camera offers cooled thermal camera performance and reliability at the price of an uncooled camera. The camera is equipped with a continuous zoom lens ranging from 25 to 225mm and providing a human detection range of over 6km. Its high-sensitivity uncooled 640×480 resolution detector with 17μm pitch provides a detailed and clear picture, offering an outstanding visual assessment tool for a range of perimeter and homeland security applications. Secured inside a ruggedized enclosure, the camera can withstand the harshest weather and environmental conditions - including rain, direct sunlight, high humidity and dust.

• 8~14μm spectral range
• 640×480 format
• 25μm pixel
• 60Hz frame rate
• Analog video output: CCIR or RS-170(PAL or NTSC)
• Digital video output: USB2 or LVDS
• Communication type: RS 232/RS 422
• Image processing method: Histogram equalization or linear equalization
• Region of interest (ROI): up to 2 regions can be defined
• Operating voltage: 7~9 VDC
• Alternative operating voltage: 9~28V
• NETD < 70mK
• Shutter type: Linear
• Operating temperature range: -30C to +60C

•  Border Protection;
•  Coastline Protection;
•  Port Security;
•  Airport Perimeter;
•  Homeland Security;
•  Maritime Security;
•  Critical Site Security Target Acquisition;
•  Law Enforcement;
•  Firefighting;
