The Guard C

Model: MS-140
Type: Optronic System
Name
Weight:
Key Features:
Product Description

Description
:

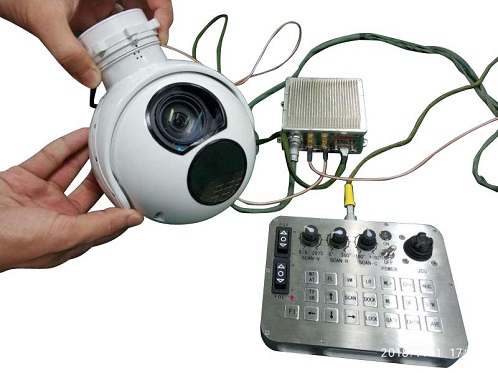

MS-140 is a multi-sensor turret system designed for the demanding airborne environment. It combines high performance sensors with a high performance turret to meet the operational needs of airborne observation, surveillance and reconnaissance.
MS-140 can mount for light rotary wing and small unmanned aircraft platforms, provides day and night, all weather surveillance capability. It can stand up to harsh environments offering proven high reliability with a very low maintenance requirement.
MS-140 is a versatile platform with a modular payload, contain a high performance thermal imager, a HD color TV camera with optional low light mode, and a eye-safe laser range finder. Built-in a miniaturized electronic unit, incorporates a video autotracker capable of operating on any of the imaging sensor channels.
The customs can benefit from a powerful thermal imaging solution and auto tracking capability for preventing illegal activities with complete discretion.

Key Benefits:
• Light weight < 1.8kg

• 2-axis gimbal design, high accuracy, low-cost solution

• Highly stabilized crystal clear image on both HD color TV and thermal imager

• Gyro stabilized line-of-sight mechanism enable high precise designation

• Modular configuration payload, compact and lightweight design permits additional payload and fuel capacity in the carrying platform while facilitating future upgrades


Applications:
• Maritime Patrol

All-weather surveillance, day and night surveillance for range detection, identification and tracking of all naval targets.

• Search And Rescue

All-weather, day and night detection for naval units in distress and/or men at sea.

• Coast Guard/Police Operations

All-weather, day and night detection/identification of illegal activities (immigration, smuggling, poaching, traffic control, etc).

• Land Operations

All-weather, day and night support to the operation of multi-role armed helicopters employed for patrol, escort or protection of ground troops.
